Mechanical Timer Module Dryer Installation

Disconnect machine power – either unplug power cord or turn off breaker
Open the control panel
Use the included red tap splice connectors to connect the Mechanical Timer Module power supply to a power source between 100-240VAC behind the control panel
Open the service door and remove the machine’s mechanical timer motor assembly
There are two switches at the bottom of the timer motor assembly, each with wires connected on both ends. Typically, there is a blue wire and yellow wire connected to Switch A, and a black wire and red wire connected to Switch B. The Mechanical Timer Module came with a 4-wire harness with matching colors (blue, yellow, black, and red).

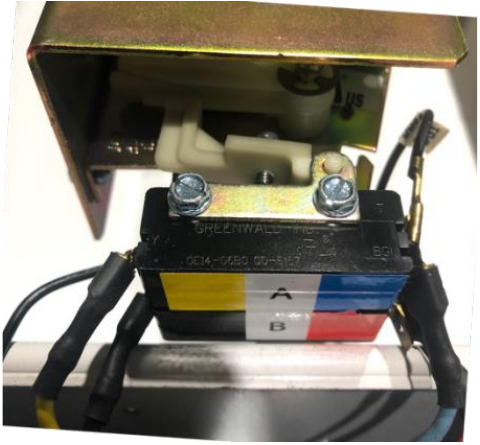

A & B Switches connected to bottom of Timer Motor Assembly
Disconnect one of the wires from the timer motor assembly, connect the corresponding wire from the 4-wire harness to that switch terminal, and connect the machine’s wire to the piggyback connector on the wire from the 4-wire harness.
1. Repeat this step for the other three wires connected to the timer motor assembly.
2. After connecting all four wires from the 4-wire harness to the Timer Motor Assembly, fish the 4-wire harness through the conduit between the meter case and control panel cavity.

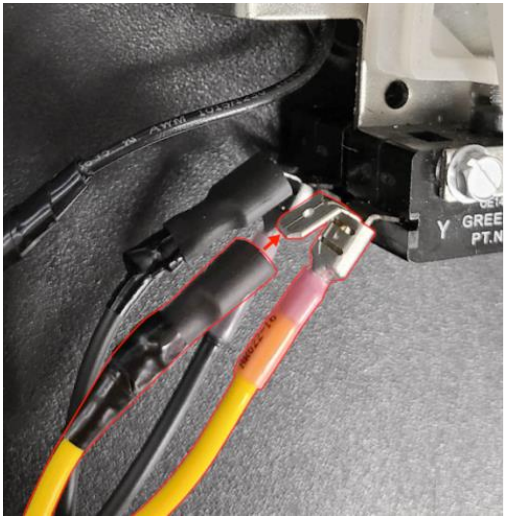

4-wire Harness connected with piggyback connectors
Connect the 4-wire harness to the Mechanical Timer Module as shown:

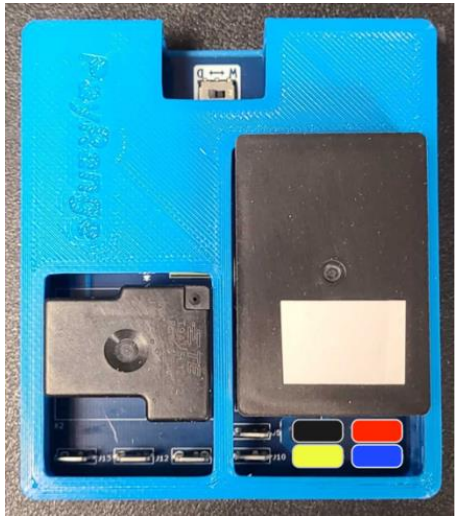

4-wire Harness connection to Mechanical Timer Module

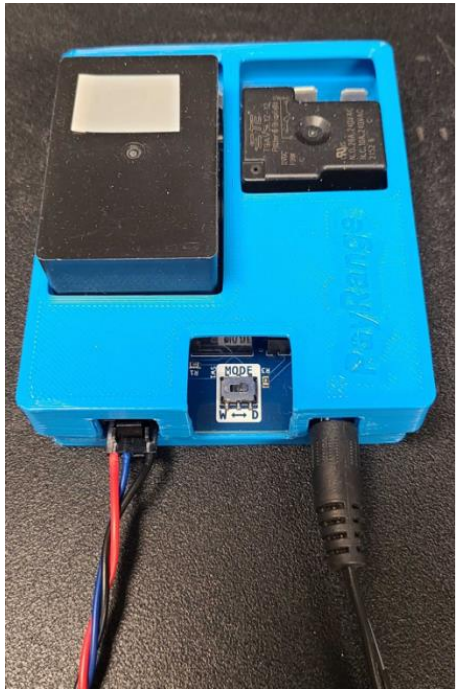

Connect the power supply and BluKey harness to the Mechanical Timer Module, connect the BluKey to the BluKey harness, and place components behind machine control panel.
4-wire Harness connection to Mechanical Timer Module
