Each PayRange Laundry installation requires two or more components that are identified by a kit number. In an effort to reduce the use of wasteful, plastic packaging, the components are shipped in bulk rather than each kit being individually packaged. Use this sheet to determine which components are used together and the installation guide needed.

BluKey Pulse Kits

The following kits are used with BluKey Pulse (P/N: 10.00611-xx)

Kit Description Components Main Harness Label
K11 Alliance (MDC)
Kit #: 13.00926-xx
K11 Install Guide
  • Laundry C1 harness (w/ Interface Module)
 P/N: 11.00848-xx
Laundry C1: Alliance (MDC)
K12 Alliance (ACA)
Kit #: 13.00927-xx
K12 Install Guide
  • Laundry C2 harness (w/ Interface Module)
 P/N: 11.00849-xx
Laundry C2: Alliance (ACA)
K13 Maytag
Kit #: 13.00928-xx
K13 Install Guide
  • Laundry C3 harness (w/ Interface Module)
 P/N: 11.00851-xx
Laundry C3: Maytag
K15 LG-C
Kit #: 13.00945-xx
K15 Install Guide
  • Laundry C5 harness (w/ Interface Module)
 P/N: 11.00902-xx
Laundry C5: LG-C
K16 Maytag (ADC)
Kit #: 13.01068-xx
K16 Install Guide
  • Laundry C6 harness (w/ Interface Module)
  • Splice connectors (4)
 P/N: 11.01066-xx
Laundry C6: Maytag (ADC)
Relay Module HV
Kit #: 13.01572-xx
Relay Module Install Guide
  • Relay Module & Harness and Splice Connectors (4) – packaged as P/N: 13.01580-xx
  • High voltage power supply
 P/N: 11.01569-xx
RelayModule Harness Universal
HV input: 100-240VAC
Relay Module LV
Kit #: 13.01576-xx
Relay Module Install Guide
  • Relay Module & Harness and Splice Connectors (4) – packaged as P/N: 13.01580-xx
  • Low voltage power supply
 P/N: 11.01569-xx
RelayModule Harness Universal
LV input: 20-36VAC

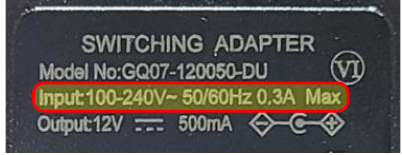

High voltage power supply label (HV input: 100-240VAC)

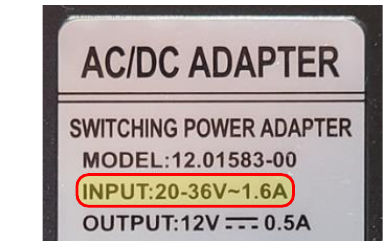

Low voltage power supply label (LV input: 20-36VAC)

BluKey Pro Kits

The following kits are used with BluKey Pro 12cd (P/N: 10.01265-xx)

Kit Description Components Main Harness Label
K21c Alliance (MDC)
Kit #: 13.01510-xx
  • Laundry C1 harness, including:
    • R5 harness (11.01429-xx)
    • MDC Card Adapter (10.01403)
 P/N: 11.00848-xx
Laundry C1: Alliance (MDC)
K22c Alliance (ACA)
Kit #: 13.01511-xx
  • Laundry C2 harness, including:
    • R5 harness (11.01429-xx)
    • ACA Card Adapter (10.01406)
 P/N: 11.00849-xx
Laundry C2: Alliance (ACA)
K23c Maytag
Kit #: 13.01513-xx
  • Laundry C3 harness, including:
    • R5 harness (11.01429-xx)
    • Maytag Card Adapter (10.01409)
 P/N: 11.00851-xx
Laundry C3: Maytag
K35c LG (Serial)
Kit #: 13.01567-xx
  • Laundry C15 harness, including:
    • R6 harness (11.01683-xx)
 P/N: 11.01567-xx
Laundry C15: LG-Serial

Vending – BluKey Plus

Any vending equipment included with the order requires BluKey Plus. Harnesses are not needed for installation in compatible equipment.
