Age restricted vending install guide

Follow

For use in age-restricted vending equipment that supports cashless payment via MDB Interface

Note: Machine controller must be equipped with MDB interface and a firmware version that supports cashless payment

1. Power the machine off with the power switch (if applicable) or unplug from outlet.

   Warning: DO NOT connect immi BluCheck while machine is powered on. Failure to remove power from machine can result in damage to machine controller and/ore immi BluCheck device.

2. Disconnect and remove the coin acceptor, bill accepter and card reader (if equipped) from the machine.
3. Install cover plates for any payment acceptance openings.

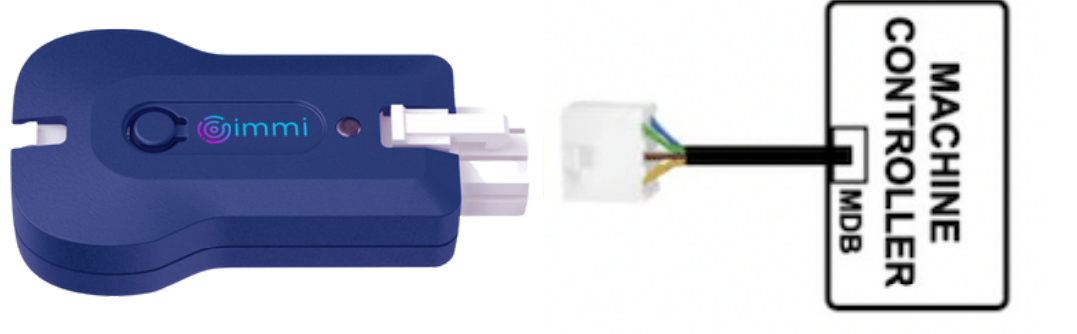

4. Locate the MDB harness coming directly from the machine controller. Connect the immi BluCheck to the MDB harness.

5.

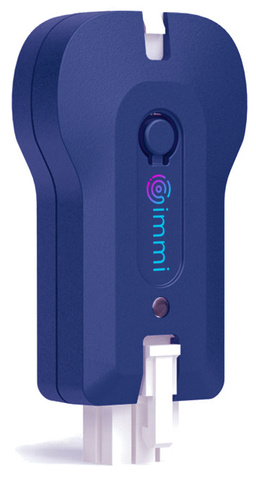

6. Restore power to machine -- after machine controller is fully booted, BluCheck status LED should turn solid blue.

   If LED is flashing red, then the device is being disabled by the machine:

   1. Verify proper installation as outlined abvove
   2. Verify machine is in Ready Mode (ready to accept payment, not in programming menu): depress door switch to simulate machine door being closed or back out of programming menu.
   3. Check machine diagnostics for error codes that would inhibit payment
   4. Verify machine pricing is set and there is product in machine
   5. Some machines will disable payment systems if coin tubes are empty/low
7. Affix PayRange "Accepted Here" decal on machine.
8. Take picture of machine with product filled and door closed (you will send this picture to PayRange in step 10).
9. Register device via Operator Mode of the PayRange App or through the manage dashboard at manage.payrange.com.

10. Activate the immi BluCheck device by contacting the PayRange help desk. You will be asked to:

    1. Send a picture of machine
    2. Confirm location name and address
    3. Provide minimum age required for purchase for the state the machine is located in. Minimum age must be the minimum age requirement by state law.
    4. Confirm all other payment acceptance devices have been uninstalled or disabled.

    Note: if at any time the system detects other payment acceptance devices on machine, PayRange system may automatically disable.

11. Make a test purchase ensuring PayRange app requires age verification prior to purchase.
